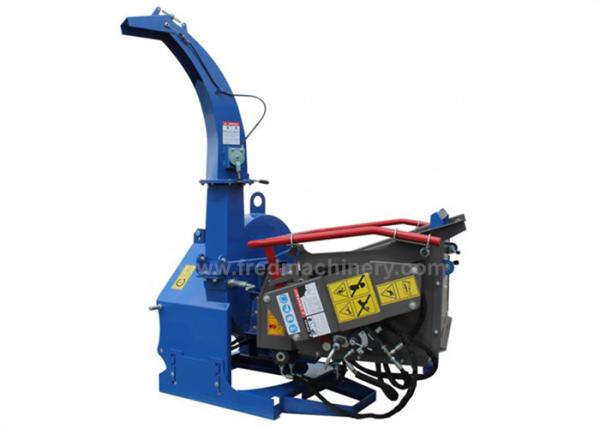

Tractor Wood Chipper With 150lbs. Weight Flywheel To Match 30 - 70HP Tractor
The cutting disc overcomes the cutting resistance of the inertia force - the weight of the cutting disc itself is 150lbs.(67 kg). The drive is transferred from the tractor through the PTO shaft, which is equipped with a safety pin, which is cut in the event of too much load on the machine and disconnects the direct drive.
The chipper with a three-point hitch system is designed to work with a 30 - 70HP agricultural tractor. The material collecting system consists of two hydraulically driven cogged shafts. The material retrieval mechanism has a 10-degree speed regulator and a material dispensing function.
You buy a machine prepared to work with the Operator's manual and CE certificate!
The Fred BX52R chipper is designed for chipping the branches and trunks of trees up to 12cm in diameter.
The hydraulic system drive comes from the tractor's hydraulic outlets (quick couplings).
The chipper has a disc locking latch that facilitates the replacement of cutting knives.
The machine is equipped with an adjustable base, which makes it easy to set the height of the chipper relative to the tractor's drive.
Thanks to the folding throat, it is possible to quickly and easily change dimensions, which saves space during transport.
The chipper is equipped with a number of improvements to improve the safety and productivity of work according to the latest EU directives. It has a new generation of hydraulic system, protection and covers. It has a blockade of continuous operation, feeding mode, neutral mode and material withdrawal from the throat.
Disc chippers, unlike drum chippers, do not load or damage the engine in the tractor and do not cause faster wear of the clutch.
The generated chips are thrown by a tube rotated by 360 ° in relation to the chipper base. Massive shield equipped with 4 cutting knives, double-edge, sharpened + one bed knife.
In addition, we adjust our disc with breakers (shovels), shredding the obtained framework to a value of 20-50 mm. The chipper is additionally equipped with shield ventilation.
All bearings protected against dust, stripping, etc. are lubricated by easily accessible calendars. Includes all hooks, bolts, etc.
